F77FileExactSolution< VectorType, dim > Class Template Reference

Application of initial conditions. More...

#include <F77FileExactSolution.h>

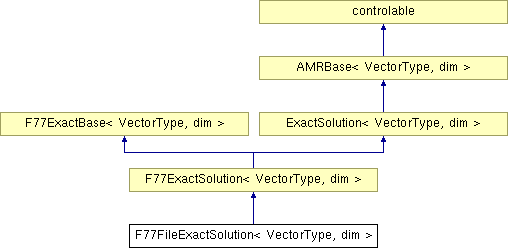

Inheritance diagram for F77FileExactSolution< VectorType, dim >:

List of all members.

Public Types
typedef F77FileInput < VectorType, dim >	file_input_type
typedef F77UpdateLevelTransfer < Vector< DataType, 1 >, dim >	level_transfer_type
typedef base::vec_grid_fct_type	vec_grid_fct_type
typedef base::grid_fct_type	grid_fct_type
typedef base::generic_func_type	generic_func_type
typedef base::vec_grid_data_type	vec_grid_data_type
typedef base::grid_data_type	grid_data_type
Public Member Functions
	F77FileExactSolution (generic_func_type initial)
	F77FileExactSolution (generic_func_type exact, generic_func_type in, generic_func_type prolong)
	F77FileExactSolution (generic_func_type exact, generic_func_type out, generic_func_type in, generic_func_type prolong)
	F77FileExactSolution (generic_func_type exact, generic_func_type out, generic_func_type in, generic_func_type prolong, generic_func_type restrct)
	F77FileExactSolution (generic_func_type exact, generic_func_type out, generic_func_type in, generic_func_type prolong, generic_func_type restrct, generic_func_type update)
virtual	~F77FileExactSolution ()
virtual void	register_at (ControlDevice &Ctrl)
virtual void	register_at (ControlDevice &Ctrl, const std::string &prefix)
virtual void	init ()
virtual void	update ()
virtual void	finish ()
virtual void	SetupData (GridHierarchy *gh, const int &ghosts)
virtual bool	Set (vec_grid_fct_type &u, grid_fct_type &work, const double &t)
Protected Attributes
int	_ReadInFirst
double	_PhysicalTime
double	_TimeDelta
file_input_type *	_FileInput
level_transfer_type *	_LevelTransfer

---

Detailed Description

template<class VectorType, int dim>
class F77FileExactSolution< VectorType, dim >

Application of initial conditions.

At first, the user-supplied function f_out() is called to extract the relevant data from the numerical solution. Then, the data is overwritten (usually only in part) by the data read from files and finally transformed backwards by calling the user-supplied function f_in(). Note that the transformation operations have to be done for the entire hierarchy to allow correct prolongation utilizing a function f_prolong.

Author:

Ralf Deiterding

Version:

1.0

Date:

Dec-2008

---

Member Typedef Documentation

template<class VectorType , int dim>

typedef F77FileInput<VectorType,dim> F77FileExactSolution< VectorType, dim >::file_input_type

template<class VectorType , int dim>

typedef base::generic_func_type F77FileExactSolution< VectorType, dim >::generic_func_type

Reimplemented from F77ExactSolution< VectorType, dim >.

template<class VectorType , int dim>

typedef base::grid_data_type F77FileExactSolution< VectorType, dim >::grid_data_type

Reimplemented from F77ExactSolution< VectorType, dim >.

template<class VectorType , int dim>

typedef base::grid_fct_type F77FileExactSolution< VectorType, dim >::grid_fct_type

Reimplemented from ExactSolution< VectorType, dim >.

template<class VectorType , int dim>

typedef F77UpdateLevelTransfer<Vector<DataType,1>, dim> F77FileExactSolution< VectorType, dim >::level_transfer_type

template<class VectorType , int dim>

typedef base::vec_grid_data_type F77FileExactSolution< VectorType, dim >::vec_grid_data_type

Reimplemented from F77ExactSolution< VectorType, dim >.

template<class VectorType , int dim>

typedef base::vec_grid_fct_type F77FileExactSolution< VectorType, dim >::vec_grid_fct_type

Reimplemented from ExactSolution< VectorType, dim >.

---

Constructor & Destructor Documentation

template<class VectorType , int dim>

F77FileExactSolution< VectorType, dim >::F77FileExactSolution

(

generic_func_type

initial

)

[inline]

template<class VectorType , int dim>

F77FileExactSolution< VectorType, dim >::F77FileExactSolution	(	generic_func_type	exact,
		generic_func_type	in,
		generic_func_type	prolong
	)			[inline]

References F77FileExactSolution< VectorType, dim >::_FileInput, and F77FileExactSolution< VectorType, dim >::_LevelTransfer.

template<class VectorType , int dim>

F77FileExactSolution< VectorType, dim >::F77FileExactSolution	(	generic_func_type	exact,
		generic_func_type	out,
		generic_func_type	in,
		generic_func_type	prolong
	)			[inline]

References F77FileExactSolution< VectorType, dim >::_FileInput, F77FileExactSolution< VectorType, dim >::_LevelTransfer, and FileInput< VectorType, dim >::SetLevelTransfer().

template<class VectorType , int dim>

F77FileExactSolution< VectorType, dim >::F77FileExactSolution	(	generic_func_type	exact,
		generic_func_type	out,
		generic_func_type	in,
		generic_func_type	prolong,
		generic_func_type	restrct
	)			[inline]

References F77FileExactSolution< VectorType, dim >::_FileInput, F77FileExactSolution< VectorType, dim >::_LevelTransfer, and FileInput< VectorType, dim >::SetLevelTransfer().

template<class VectorType , int dim>

F77FileExactSolution< VectorType, dim >::F77FileExactSolution	(	generic_func_type	exact,
		generic_func_type	out,
		generic_func_type	in,
		generic_func_type	prolong,
		generic_func_type	restrct,
		generic_func_type	update
	)			[inline]

template<class VectorType , int dim>

virtual F77FileExactSolution< VectorType, dim >::~F77FileExactSolution

(

)

[inline, virtual]

---

Member Function Documentation

template<class VectorType , int dim>

virtual void F77FileExactSolution< VectorType, dim >::finish

(

)

[inline, virtual]

Reimplemented from ExactSolution< VectorType, dim >.

template<class VectorType , int dim>

virtual void F77FileExactSolution< VectorType, dim >::init

(

)

[inline, virtual]

Reimplemented from ExactSolution< VectorType, dim >.

template<class VectorType , int dim>

virtual void F77FileExactSolution< VectorType, dim >::register_at	(	ControlDevice &	Ctrl,
		const std::string &	prefix
	)			[inline, virtual]

Reimplemented from ExactSolution< VectorType, dim >.

template<class VectorType , int dim>

virtual void F77FileExactSolution< VectorType, dim >::register_at

(

ControlDevice &

Ctrl

)

[inline, virtual]

Reimplemented from ExactSolution< VectorType, dim >.

template<class VectorType , int dim>

virtual bool F77FileExactSolution< VectorType, dim >::Set	(	vec_grid_fct_type &	u,
		grid_fct_type &	work,
		const double &	t
	)			[inline, virtual]

Reimplemented from ExactSolution< VectorType, dim >.

template<class VectorType , int dim>

virtual void F77FileExactSolution< VectorType, dim >::SetupData	(	GridHierarchy *	gh,
		const int &	ghosts
	)			[inline, virtual]

Reimplemented from AMRBase< VectorType, dim >.

References ExactSolution< VectorType, dim >::register_at().

template<class VectorType , int dim>

virtual void F77FileExactSolution< VectorType, dim >::update

(

)

[inline, virtual]

Reimplemented from ExactSolution< VectorType, dim >.

---

Member Data Documentation

template<class VectorType , int dim>

file_input_type* F77FileExactSolution< VectorType, dim >::_FileInput [protected]

Referenced by F77FileExactSolution< VectorType, dim >::F77FileExactSolution().

template<class VectorType , int dim>

level_transfer_type* F77FileExactSolution< VectorType, dim >::_LevelTransfer [protected]

Referenced by F77FileExactSolution< VectorType, dim >::F77FileExactSolution().

template<class VectorType , int dim>

double F77FileExactSolution< VectorType, dim >::_PhysicalTime [protected]

template<class VectorType , int dim>

int F77FileExactSolution< VectorType, dim >::_ReadInFirst [protected]

template<class VectorType , int dim>

double F77FileExactSolution< VectorType, dim >::_TimeDelta [protected]

---

The documentation for this class was generated from the following file:

• amroc/amr/F77Interfaces/F77FileExactSolution.h
